ABSTRACT

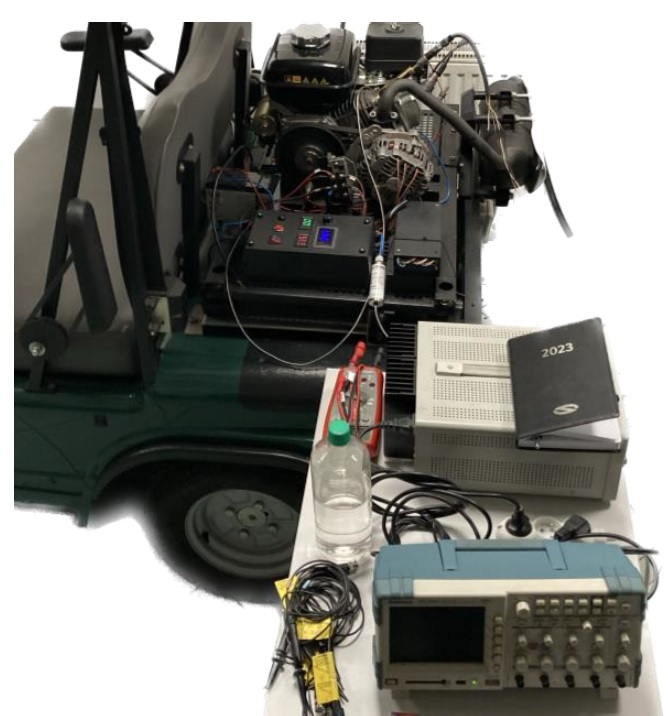

The article contains the results of an analysis of the suitability of a pressure sensing glow plug for use in a hydrogen engine control system. Due to the properties of hydrogen, the process of its combustion in spark-ignition engines is significantly different from the classic fuels. It is planned to use the pressure sensor signal to control the combustion process to obtain high power and efficiency, with the lowest possible emission of nitrogen oxides, which is the main harmful component of hydrogen engines. After an initial assessment of suitability, it was decided to use a pressure sensing glow plug. This choice is dictated by the low price, good availability and high durability of these sensors. The preliminary tests were carried out using a low-power single-cylinder SI engine coupled with a 48V generator. The tests were carried out for several values of engine speed and load of the generator and for classic gasoline with a research octane number (RON) of 95. In order to obtain an increased pressure rise rate in the cylinder, as for hydrogen fueling, the engine operation was also tested with unmodified light gasoline used as solvent, which is characterized by a significantly lower RON value. The use of a reference pressure sensor in the cylinder made it possible to determine the behavior of the PSG in various operating conditions. The tests revealed that the differences in the pressure waveforms registered with both sensors can be systematized depending on the engine speed and its load.

REFERENCES (21)
1.
Al-Dabbas MA, Al-Rousan AA. The simulation of using hydrogen in gasoline internal combustion engines. Pacific Journal of Science and Technology. 2009;10(1):93-106.

2.
Balasubramanian D, Annamalai M. A study on performance, combustion and emission behaviour of diesel engine powered by novel nano nerium oleander biofuel. J Clean Prod. 2018;196:74-83. https://doi.org/10.1016/j.jcle....

3.
Bondarenko I, Lukoševičius V, Keršys R Neduzha L. Inves-tigation of dynamic processes of rolling stock–track interac-tion: experimental realization. Sustainability. 2023;15:5356. https://doi.org/10.3390/su1506....

4.
Chłopek Z, Stasiak P. The analysis of an unrepeatability of cylinder pressure signal in internal combustion engines. Combustion Engines. 2005;120(1):31-39. https://doi.org/10.19206/CE-11....

5.
Gis M, Gis W. The current state and prospects for hydrogen-isation of motor transport in Northwestern Europe and Po-land. Combustion Engines. 2022;190(3):61-71. https://doi.org/10.19206/CE-14....

6.
Lijewski P, Fuć P, Grzeszczyk R, Molik P, Rymaniak Ł, Ziółkowski A. The use of an integrated combustion chamber sensor for engine cylinder pressure measurement (in Polish). Logistyka. 2014;3:3765-3770.

7.
Longwic R, Tatarynow D, Kuszneruk M, Wozniak-Borawska G. Preliminary tests of a Diesel engine powered by diesel and hydrogen. Combustion Engines. 2023;195(4): 35-39. https://doi.org/10.19206/CE-16...

8.
Matla J. Possible applications of prechambers in hydrogen internal combustion engines. Combustion Engines. 2022;191(4):77-82. https://doi.org/10.19206/CE-14....

9.
Menes M. Program initiatives of public authorities in the field of hydrogenation of the economy in a global perspective, as of the end of 2020. Combustion Engines. 2022;189(2):18-29. https://doi.org/10.19206/CE-14....

10.
New glow plug technology from the world market leader. BERU Technical briefs. Available from: https://www.beruparts.eu/conte....

11.
Noga M. Selected issues of the indicating measurements in a spark ignition engine with an additional expansion process. Appl Sci. 2017;7(3):295. https://doi.org/10.3390/app703....

12.
Noga M, Gorczyca P. Development of the range extender for a 48 V electric vehicle. Combustion Engines. 2019;177(2):113-121. https://doi.org/10.19206/CE-20....

13.
Noga M, Gorczyca P, Hebda R. The effects of use of the range extender in a small commercial electric vehicle. Au-tomotive Experiences. 2021;4(1):5-19. https://doi.org/10.31603/ae.41....

14.
Pavelčík V, Dižo J, Blatnický M, Ishchuk V, Molnár D. Analysis of the test bench design influence on the cooling performance of a rail vehicle brake disc. Communications – Scientific Letters of the University of Žilina. 2023;25(2):194-200. https://doi.org/10.26552/com.C....

15.
Pielecha I, Wierzbicki S, Sidorowicz M, Pietras D. Combus-tion thermodynamics of ethanol, n-heptane, and n-butanol in a Rapid Compression Machine with a Dual Direct Injection (DDI) supply system. Energies. 2021;14:2729. https://doi.org/10.3390/en1409....

16.
Stępień Z. Synthetic automotive fuels. Combustion Engines. 2023;192(1):78-90. https://doi.org/10.19206/CE-15....

17.
Szczurowski K, Walczak D, Zieliński Ł. Use of pressure sensor glow plug for the control of combustion process (in Polish). Zeszyty Naukowe Instytutu Pojazdów. 2014;99:139-144.

18.
Szwaja S. Combustion pressure fluctuations study in the hydrogen fueled internal combustion engine (in Polish). Częstochowa University of Technology Publishing House. Częstochowa 2010.

19.
Szwaja S, Szymkowiak M. The Szymkowiak’s over-expanded cycle in the rocker engine with the variable com-pression ratio – kinematics. Combustion Engines. 2022;189(2):68-72. https://doi.org/10.19206/CE-14....

20.
Vollberg D, Wachter D, Kuberczyk T, Schultes G. Cylinder pressure sensors for smart combustion control. Journal of Sensors and Sensor Systems 2019;8:75-85. https://doi.org/10.5194/jsss-8....

21.
Wesołowski M, Hamid M, Mońka P, Janicka A. Analysis of the potential of electro-waste as a source of hydrogen to power low-emission vehicle powertrains. Combustion En-gines. https://doi.org/10.19206/CE-16....
